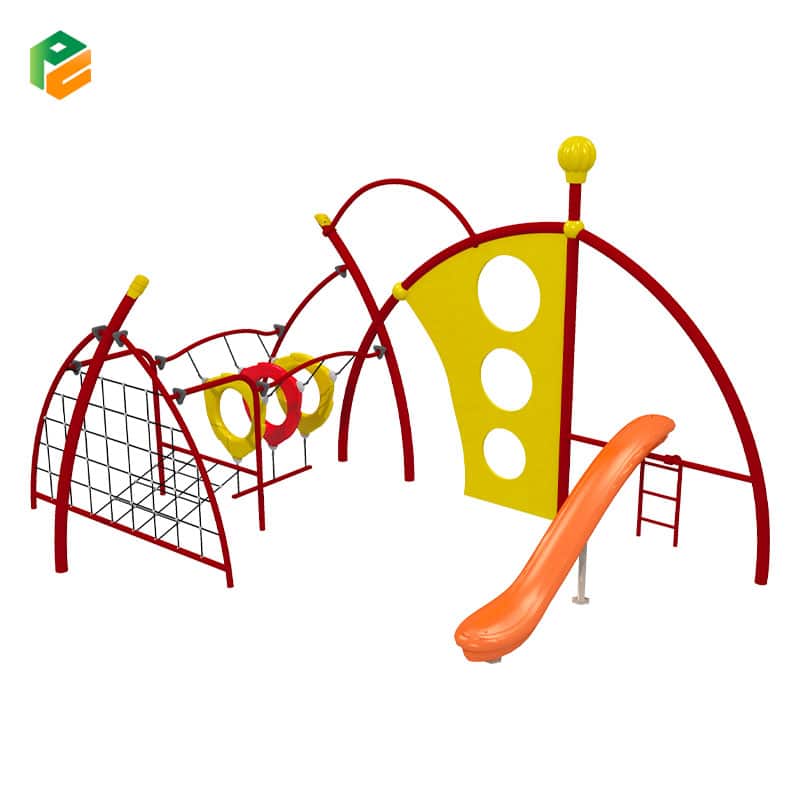

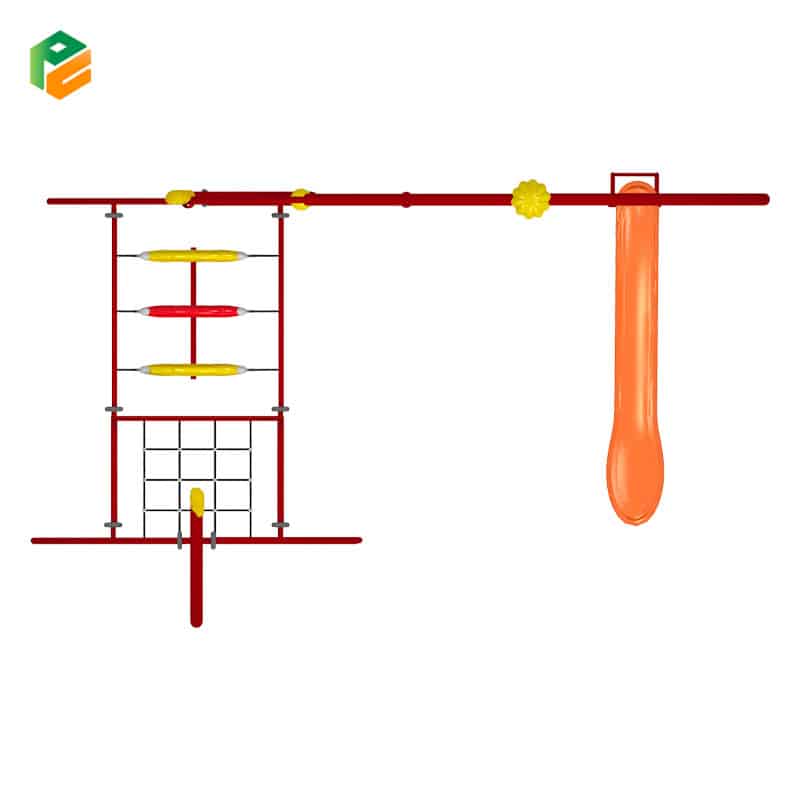

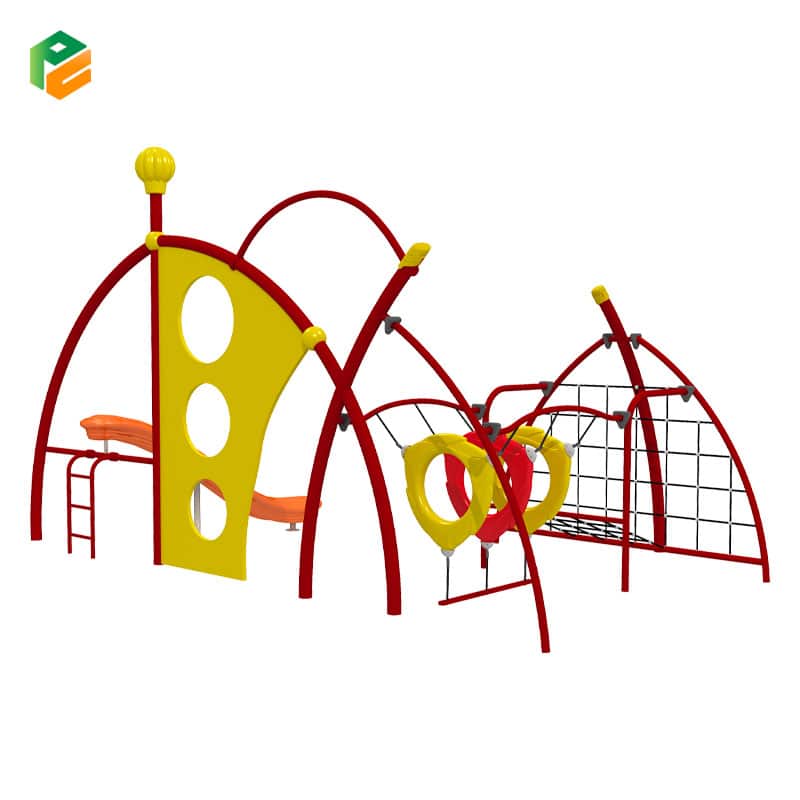

Galvanized Steel Climbing Frame with Slide for Kids

Feature	Specifications & Details
Product Model	OTC004
Dimensions	600 × 450 × 250 cm (L × W × H)
Fall Height	200 cm
Safety Area	1000 × 850 cm (Calculated per EN 1176-1 & EN 1176-11: A 2.0m fall height dictates an extended impact area clearance of approximately 2.0 meters around the entire lateral climbing perimeter, plus a mandatory 2.0m exit zone extending from the slide)
Target Age Group	6 – 12 Years
Max Capacity	6 – 10 Children (Determined by obstacle flow: safely accommodates 2-3 children navigating the vertical rope net, 2-3 traversing the suspended ring climber, 1-2 climbing the access ladder, and 1-2 utilizing the slide)
Primary Materials	Heavy-duty 114mm or 89mm powder-coated Galvanized Steel support pipes, steel-core nylon climbing rope (vandal-resistant), food-grade LLDPE (Linear Low-Density Polyethylene) plastic components, and stainless steel hardware
Core Components	Red arched steel support frames. Left bay: Vertical square rope climbing net. Center bay: Suspended horizontal ring climber featuring three large LLDPE rings (yellow/red/yellow) strung on steel-core cables. Right bay: Large yellow structural barrier panel with three circular cutouts, attached to a small steel access ladder and an orange single straight slide. Yellow spherical pole toppers
Customization	Colors of the steel arches, plastics, and ropes can be tailored to specific site requirements
Durability Features	Thick galvanized steel pipes provide commercial-grade structural integrity for heavy dynamic loads; steel-core ropes prevent stretching and vandalism; roto-molded LLDPE plastics are anti-UV, anti-static, and highly impact-resistant
Safety Standards	Engineered to comply with EN-1176-1:2017, EN-1176-11 (Specific Safety Requirements for Spatial Networks) European standards, and Chinese GB-34272 safety specifications; CE certified
Warranty	1-year limited warranty on ropes and plastic parts; 3-year warranty on main structural steel frames
Application Areas	Elementary schools, public parks, physical education zones, and large community green spaces

Production processes for playground equipment can vary based on the specific materials used, the complexity of the design, and the safety regulations. In general, the production process involves designing the equipment, sourcing materials, cutting, shaping, welding, assembling, and finishing (painting, powder coating, etc.). Safety standards and guidelines are closely followed to ensure that the final product meets all necessary safety requirements for children’s play.

Packaging & Shipping

Packing methods for playground equipment involve the careful and efficient arrangement of various components, structures, and materials to ensure safe transportation, storage, and installation. These methods aim to prevent damage, maximize space utilization, ensure that the playground equipment arrives at its destination in good condition and can be efficiently assembled for safe use.

Packing/Loading

1. Disassembly and Modular Packing: Playground equipment, such as slides, climbing frames, and swings, can often be disassembled into smaller components. These components are then packaged separately or in modular sets, making them easier to transport and store. This method reduces the overall size of each package and allows for more efficient use of space.
2. Bubble Wrap and Cushioning: Fragile parts or components made of sensitive materials, such as plastic or glass, are wrapped in bubble wrap or other cushioning materials. This provides protection against impact and minimizes the risk of scratches or breakage during transit.
3. Labeling and Organization: Clearly labeling each package with information such as contents, assembly instructions, and handling guidelines ensures that the playground equipment is easily identifiable and manageable during transportation and installation.

Shipping Term

There are 3 major shipping ways to transport the goods to clients: By express, by air and by sea. For playground equipment, some of the commonly used shipping terms by sea include:
1. FOB (Free On Board): The seller is responsible for getting the playground equipment to the port of shipment and loading it onto the vessel. The buyer then takes responsibility for the transportation, insurance, and other costs from the port of shipment to the final destination.
2. CIF (Cost, Insurance, and Freight): The seller is responsible for the cost of the playground equipment, insurance, and freight to transport the equipment to the port of destination. The buyer covers any costs beyond that point, including unloading and transportation to the final location.
3. EXW (Ex Works): The buyer is responsible for the entire shipping process, from picking up the playground equipment at the seller's location to arranging transportation, insurance, and delivery to the final destination.

Installation

The installation method and process of playground equipment can vary depending on the type of equipment, manufacturer’s instructions, and safety guidelines. Remember that playground equipment installation should be carried out by trained professionals or individuals with expertise. Following manufacturer instructions, local safety regulations, and industry standards is crucial to ensure the safety and enjoyment of children using the playground.

CLICK TO VIEW

1. Planning and Design:

Identify the location for the playground equipment based on factors like available space, visibility, safety, and accessibility.
Choose the type of playground equipment based on the age group of children who will be using it.
Design a layout that includes the arrangement of different pieces of equipment, pathways, and safety zones.

2. Site Preparation:

Clear the area of any debris, rocks, roots, or other obstacles that could interfere with the installation.
Level the ground to ensure a stable and even surface.
Mark the boundaries of the playground area and safety zones.

3. Foundation Installation:

Depending on the type of equipment, you may need to install foundations such as concrete footings, ground anchors, or safety surfacing like rubber mulch or synthetic turf.
Follow the manufacturer’s specifications for the depth and dimensions of the foundations.

4. Assemble the Equipment:

Carefully follow the manufacturer’s instructions for assembling each piece of playground equipment.
Use appropriate tools and hardware to securely attach components.
Ensure that all fasteners are tightened properly to prevent equipment from becoming loose over time.

5. Safety Surfacing:

Install safety surfacing materials, such as rubber mulch, engineered wood fiber, or synthetic turf, to create impact-absorbing surfaces under and around the playground equipment.
Ensure that the safety surfacing meets safety standards and provides adequate cushioning to reduce the risk of injuries.

6. Anchoring and Stabilization:

Anchor the playground equipment securely to the foundations to prevent tipping or movement during use.
Follow the manufacturer’s guidelines for proper anchoring techniques.

7. Final Inspections:

Conduct thorough inspections of all equipment and installations to ensure everything is properly assembled, anchored, and safe for use.
Check for any sharp edges, protruding bolts, or other hazards that could cause injuries.

8. Maintenance and Periodic Inspections:

Develop a maintenance plan that includes regular inspections, cleaning, and repairs.
Periodically inspect the equipment for signs of wear and tear, and address any issues promptly to ensure continued safety.

Payment Term

Payment Term (T/T Payment):

We usually do 30% deposit by T/T payment before production, and remaining 70% payment before shipment. For our old customers who are temporarily short of cash flow , we can do 10%-20% payment upfront, and the balance payment upon receiving the B/L copy or 10 days before the cargo arrived.

What’s T/T Payment?

T/T payment stands for “Telegraphic Transfer.” In other words, an international wire of funds from the buyer’s bank to the seller’s bank.

When a Chinese supplier asks for a T/T payment, what they really mean is they want a wire transfer. (Technically, a T/T payment is not exactly the same as a wire transfer through the SWIFT system, but the vast majority of people think of them as the same thing.)

A wire transfer based on SWIFT is the most common payment method in international trade with Asian countries. It typically takes 3-5 working days to clear, and generally costs between 25 and 50 USD, depending on your agreement with the commercial department in your bank.

What Is the Most Common Payment Term Requested by Chinese Suppliers?

You get all the information that you need to know from the suppliers.
You send a 30% deposit (by T/T payment) before production starts.
Your supplier (the manufacturer & exporter) purchases the components and/or materials and arranges the production.
You have the suppliers inspect product quality before shipment.
You send the remaining 70% (by T/T payment) before shipment.
The supplier ships the goods and sends you the documents by express courier.

In graphical form, it looks like this:

How to Make T/T Payment?

Contact the commercial department of your bank, tell them you need to wire (for example) 25,000 USD to a company in China, and they will generally give you a form to fill out. If you do T/T payments frequently, your bank probably has an ‘internet banking’ application that will save you time.

Your supplier will probably send you a pro forma invoice that includes their bank account information. I strongly suggest you ask for that information earlier (as part of your pre-qualification of a potential supplier).

After you have done this, take a screenshot, or get a digital copy, and send it to your supplier.

Important tips:

Make sure to avoid any misspelling, which might cause the payment instruction to be held in limbo for weeks!
You will need to write the company name in English, not in Chinese. Don’t try to do your own translation job, even if your written Chinese is excellent! It has to match exactly the English name that is registered in the seller’s bank records.
If the company name is too long, keep writing it in the “address 1” field. This is sometimes mentioned on the T/T payment forms of banks that work a lot with China.

Other Payment Methods?

For small orders, other payment methods such as Paypal and credit cards are also acceptable.
